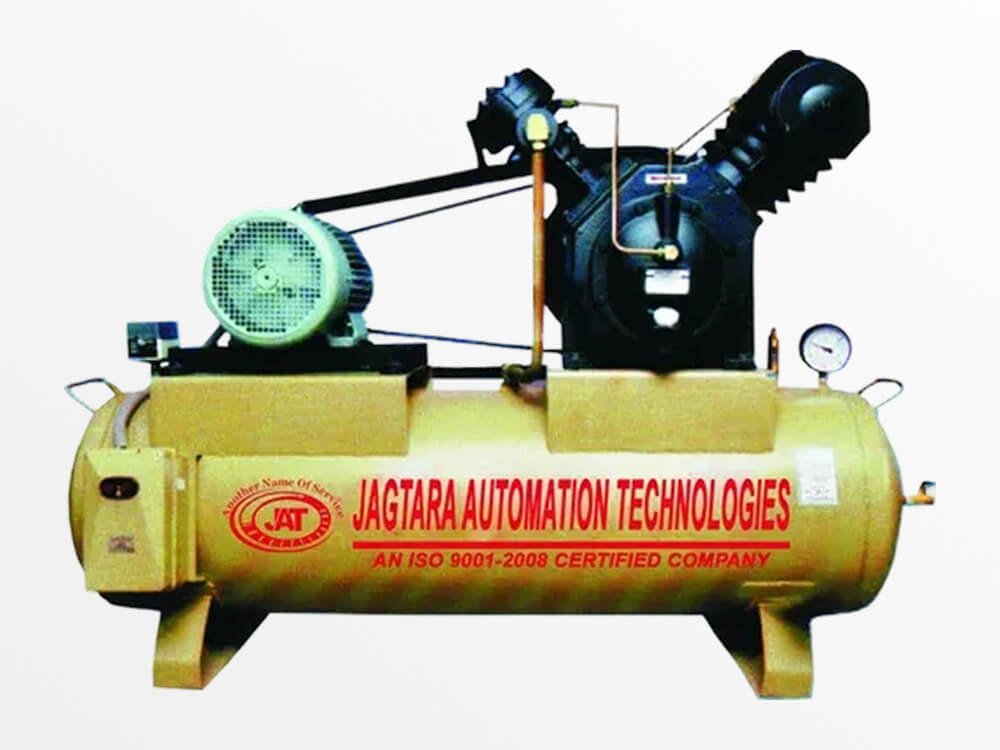

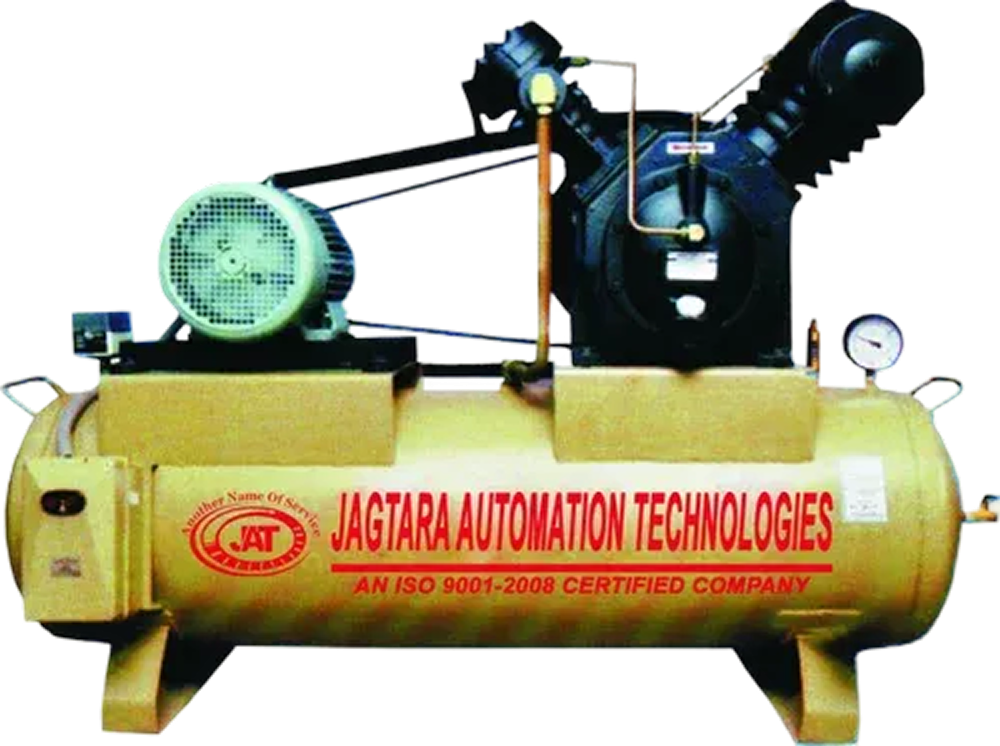

Air Compressor
Jagtara Automation is an ISO 9001-2008 Certified Company deals in Manufecturng of Quick Oil Changer Machine, Digital Automatic Tyre Inflator Machine, Air Compressor, Water Cooler, Online Industrial Ro etc. to Our Clients. These Automated Machines are turned out by our skilled personnel conforming to the highest standerds of quality. It makes the deliever unmatched performance efficency. We can also manufecture these Machine in accordance with the exact requirement of our Clients alongwith Unbeatable after Sales Service. We Provide Guarantee, Not Warranty for our Product.
Key Features
- Unique facility of wireless remote control for operator easyness
- Full compressive numerical keypad on the m/c for minimum touch
- Maximum protection to pressure sensor by enabling air filter technologies
- Inflates / deflates tyre as per the preset pressure
- The need to measure the pressure is totally eliminated
- Solenoid valves ensure no wastage of air
- Highly visible ensure no wastage of air
- All function can be set through wire less remote control (Complimentery)
- Easy to install and maintain
- Recommended pressure for popular vehicles displayed
- Accurate tyre pressure extends the life of your tyre
Model AG 03 Specifications
- ModelAG 03
- Motor HP3
- No. of Cylinders2
- Piston Displacement (cfm)11.25
- Maximum Psig175
- Pressure12.3
- AIR Receiver (ltrs)150 / 225
Model AG 5 Specifications
- ModelAG 5
- Motor HP5
- No. of Cylinders2
- Piston Displacement (cfm)17.25
- Maximum Psig175
- Pressure12.3
- AIR Receiver (ltrs)225 / 300
Technical Specifications
- Power Requirements25 VA at 230V +/- 10%, 50Hz +/- 5%, Single phase AC mains
- Dimension (mm)203 (W) x 254 (H) x 127 (D) (Approx)
- Weight (Net)6.0 kg approx. (Without hose)
- Weight (Packed)7.7 kg approx. (With hose)
- Display2 Nos. 1" 7-segment LED display, each with 3 digits
One for Desired Pressure and one for Actual Tyre Pressure - Sensor TypeCeramic-based solid-state sensor
- Sensor Range145 psi / 10 bar / 10.2 kg/cm2 / 1000 kPa
- Sensor Accuracy+/- 0.5% of full scale
- Zero DriftNil, automatically corrected by A/D converter
- Burst Pressure435 psi / 30 bar / 30.6 kg/cm2 / 3000 kPa
- Over Pressure290 psi / 20 bar / 20.4 kg/cm2 / 2000 kPa
- Inflation / Deflation Accuracy+/- 0.5% of full scale
- Resolution1 psi / 0.1 bar / 0.1 kg/cm2 / 10 kPa
- Maximum Operating Pressure145 psi / 10 bar / 10.2 kg/cm2 / 1000 kPa
- Pressure Setting Range1-150 psi
(0.1-10.3 bar / 0.01-10.5 kg/cm2 / 20-1030 kPa) - Max Over Pressure185 psi / 12.25 bar / 13 kg/cm2 / 127.5 kPa
- Max Input Pressure145 psi / 10 bar / 10.2 kg/cm2 / 1000 kPa
(For continuous duty)
